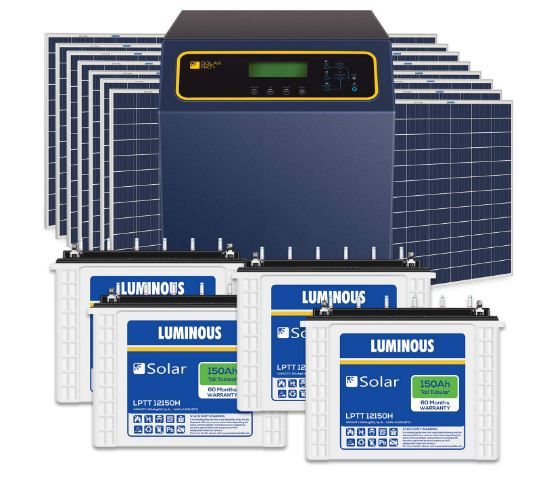

Luminous PCU NXT+ 7.5 KVA Inverter (1) With LPTT 12150H Battery (8) And Solar Panel 330W (20)- Blue
Sku NXT7.5KVALPTT 12150P330W
Special Price
₹498,990.00
![](https://smartranchi.com/static/version1711114134/frontend/MageBig/martfury_layout02/en_US/images/loader-1.gif)
MRP
was
₹816,540.00
In stock
- login to see your saved addresses
Warranty
- 24 Months on Inverter
- 60 Months on Battery
- 25 Years on Panel
Highlights
- Model: Solar PCU - NXT 7.5 kVA, LPTT12150H, Panel - PV330W | Make: LUMINOUS
Home UPS / Inverter - NXT 7.5 kVA- Rated AC power - 230V, 8.6A, Single phase
- Max Supported Panel Power -6.6 (kW), Input Voltage Range (Vmp) - 120-210
- Charge Controller - MPPT, Input Voltage (Voc) 160-240 (extracts up to 30% more power from Panels)
- Nominal Battery Bank Voltage - 96V (Supports 8 Batteries)
- Smart device with remote monitoring through the mobile app.
Solar Battery - LPTT12150H
- 150 Ah Rated Capacity @ C10, 12V
- Warranty - 60* Months
- Tubular plate Technology
- No of Batteries in Combo - 8
Solar Panel - 330W / 24V
- Capacity - 330W, 24V, Polycrystalline Panel
- Voltage: Voltage at Max Power (Vmp) - 38.03V, Open Circuit Voltage (Voc) - 45.23V
- Current: Current at Max Power (Imp) - 8.68A, Short Circuit Current (Isc) - 9.22A
- 25 years performance warranty.
- No of Panels in the Combo - 20.
Important Notes
- To avoid any physical damage to the product while unboxing, please ensure that only an authorized delivery/service executive or brand personnel opens the packaging. For products requiring installation, returns are valid only when they are installed by Company-authorized personnel.
Easy Payment Options
- Net banking & Credit/ Debit/ ATM card
- In Shop EMI by Bajaj Finance / HDB Finance
- UPI Payments
You may also like
-
Luminous Cruze 2KVA Sine Wave Home UPS With (RC24000 Battery 2Qty.)Special Price ₹54,090.00MRP was ₹72,600.00
-
Voltas 1.5 Ton 5 Star, Inverter Split AC(Copper, 4-in-1 Adjustable Mode, Anti-dust Filter, 2023 Model, 185V Vectra Elegant,White)Special Price ₹48,990.00MRP was ₹75,990.00
-
LUMINOUS Solar Home Solution NXG 1150 , LPTT12150L Solar Tubular Battery & 170 W Poly Crystalline Module Pure Sine Wave InverterSpecial Price ₹35,500.00MRP was ₹49,700.00
-
LG 7 kg with Wi-Fi EnabledAI Direct Drive Technology Fully Automatic Front Load Washing Machine Silver (FHV1207ZWP)Special Price ₹44,590.00MRP was ₹51,990.00
-
LG 185 L 3 Star Direct-Cool Single Door Refrigerator (GL-B201ASHD, Moist 'N' FSpecial Price ₹17,090.00MRP was ₹21,199.00
-
LG 32 L Convection Microwave Oven with Motorized Rotisserie, MC3286BLUSpecial Price ₹17,850.00MRP was ₹21,999.00
-
KENT MAXX (11013) 7 L UV + UF Water Purifier (White & Blue)Special Price ₹8,200.00MRP was ₹10,000.00
-
Luminous Cruze 3.5KVA Inverter with RC 18000 Battery (4 Batteries, White & Grey)Special Price ₹89,190.00MRP was ₹101,100.00
-
LG Water Purifier WW130NP with True RO Filtration & Dual Protection Stainless Steel Tank (Red, Wall Mount)Special Price ₹17,999.00MRP was ₹21,499.00
-
Voltas VC320 Visi Cooler Plastic Single Door, 320 Liters, BlackSpecial Price ₹34,990.00MRP was ₹44,990.00
-
Kaff ASHPRO DHC 60-G | Filterless | Gesture Control | Dry Heat Auto Clean Wall Mounted Chimney (Black 1180 CMH)Special Price ₹13,490.00MRP was ₹13,990.00
-
Voltas 183V Vectra Prism, 1.5 Ton, 3 Star, Inverter Split AC with 4-in-1 Adjustable Mode & Anti Dust FilterSpecial Price ₹35,990.00MRP was ₹65,990.00
-
Luminous Solar Inverter NXG 1150 With Solar Battery LPTT12200L And Solar Panel 170WSpecial Price ₹40,000.00MRP was ₹56,000.00
-
LG 185 L 3 Star Direct-Cool Single Door Refrigerator (GL-D199OBKD,Fast Ice Making)Special Price ₹18,199.00MRP was ₹20,699.00
TECHNICAL INFORMATION
General Information
Brand | Luminous |
Model Name | NXT 7.5 kVA, LPTT12150H, Panel - PV330W |
Battery Type | Tall Tubular |
Capacity (in Ah) | 150 Ah |
No. of Battery in Combo Set | 8 |
No. of Panels In Combo | 20 |
Inverter Type | Sine Wave Inverter |
Rated Power (W) | 6.6 (kW) |
Additional Information
GST (%) | 12 |
Country of Origin | India |
